Safe water for everyone
Business Mission
- Reduce the number of deaths, famine and disease caused by the lack of clean water.
- To bring about positive changes and improve the quality of life of individuals.
- Eliminating water insecurity and heavy workloads.
Issue For many years, many people in Africa:
- Disease or death due to water problems.
- They do not have access to safe water (drinking and domestic water), but they are forced to drink or use dirty water to survive.
- Many people in Africa die of disease or become ill due to water problems.
- They are forced to use facilities (hand washing, toilets) that use unsanitary water.
- They live in areas without water and have to do the hard work of carrying water.
- Even urban areas where there is groundwater and running water, the water is dirty and undrinkable.
- Even urban areas where there is groundwater and water supply, the water is unsanitary for domestic use.
- The water purification systems currently available are too expensive to purchase.
- Insufficient electricity is available to install water purification systems, or cannot afford the electricity bill.
- Insufficient electricity to install a water purification system, or cannot afford the electricity bill.
Our Solution to solve issues.
We can provide filtering systems to Africa.
Supplying inexpensive water purification systems, and to solve the problems of as many people as possible.

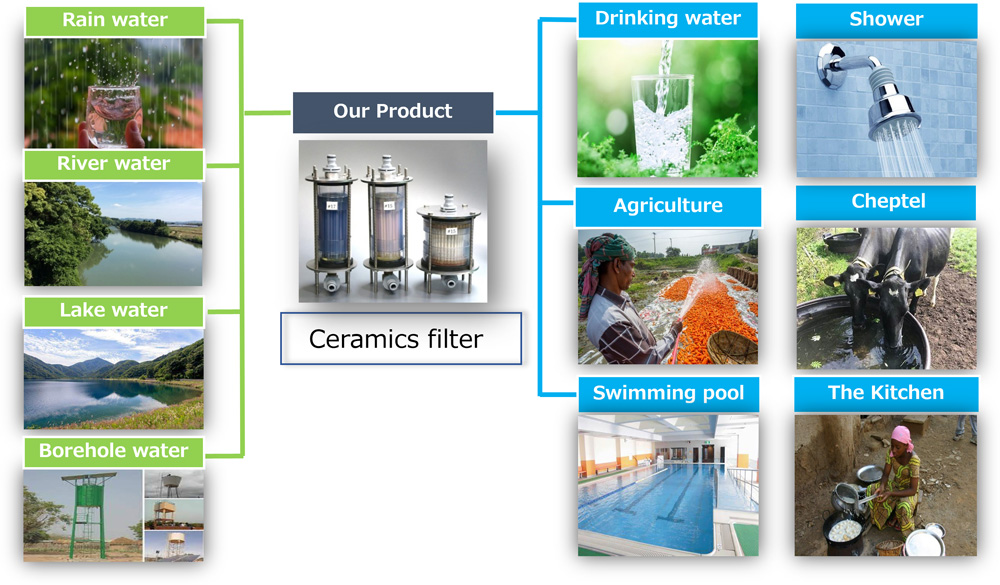

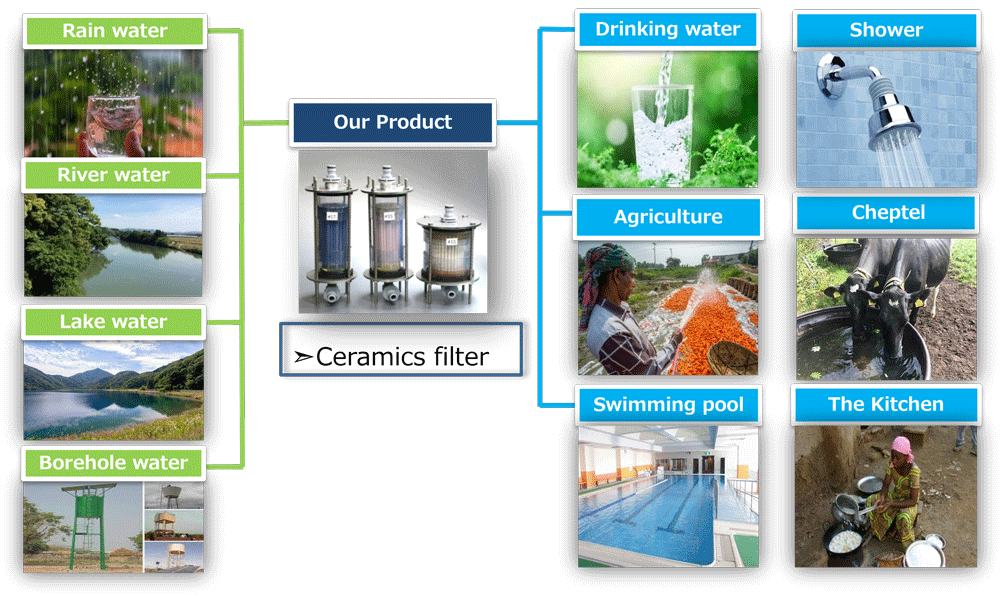

The water purification system is engineered to eliminate contaminants from various water sources, such as rivers, lakes,
wells, and swamps, with the aim of making the water safe for consumption or domestic applications.

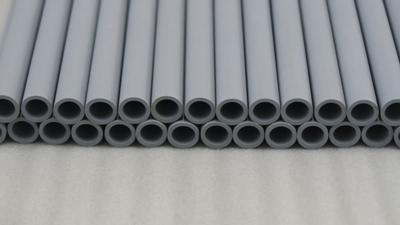

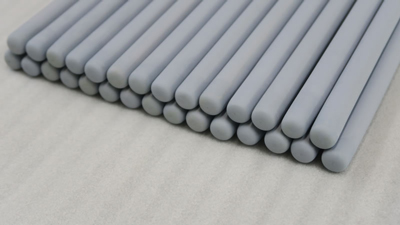

What is the ceramics filter ?
A ceramic filter is a filtration element made of a porous material of natural origin, usually clay.
Its microscopic structure helps retain particles, bacteria, and other contaminants from the water.
Our advantage
- No need for power consumption
- Light weight and easy to carry it anywhere
- Domestic or Industrial Use
- Quick installation
- More cost-effective solution
- Remove 99.9% bacteria
- Filtration 10-15L/min per 1 unit
- No need to change the filter for 8 to 10 years.

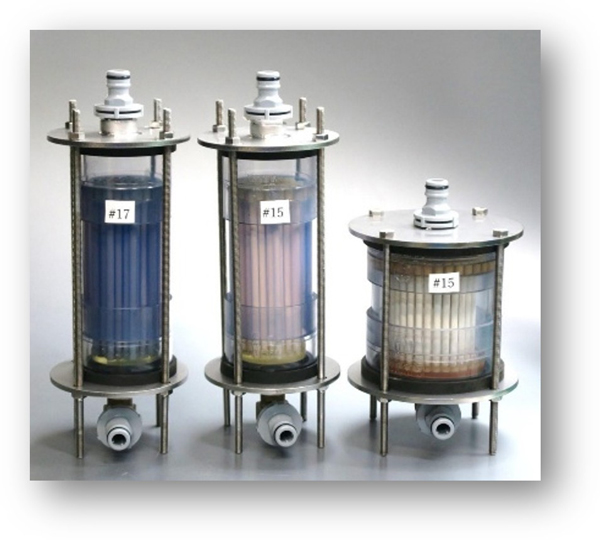

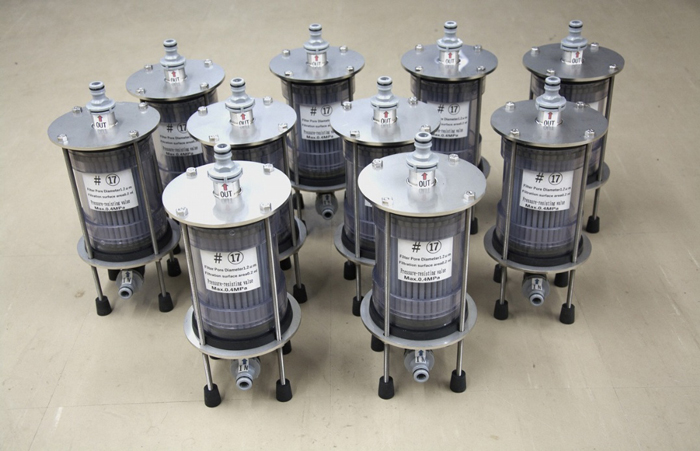

Our Ceramic Filter Solution
The filtration system uses a ceramic ultrafiltration membrane, whose pores have a uniform size of 0.1 μm to 23 μm in diameter, which allows for efficient filtration down to the sub-micron level.
It is able to physically filter out a wide range of bacteria and algae, including E. coli, Shigella, V. cholerae, Salmonella Typhi, and Cryptosporidium.
In the event of a blockage, the device switches to a tap to perform reciprocal work.
The device is durable, and has low filtration resistance.
The device is light and has a filtration flow rate of 10 to 15 liters per minute for domestic models and 100L/min for industrial models.
It is particularly suitable for situations where access to water is limited or where there is a risk of contamination.
It should be noted, however, that the performance of the system may be altered depending on the quality of the water.

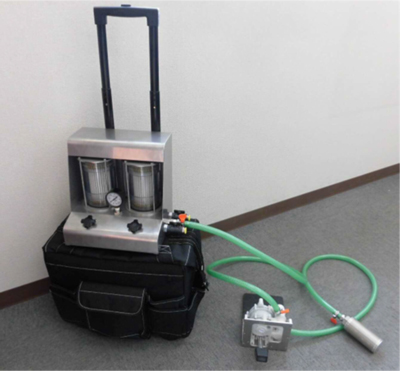

Ceramic filter Portable system

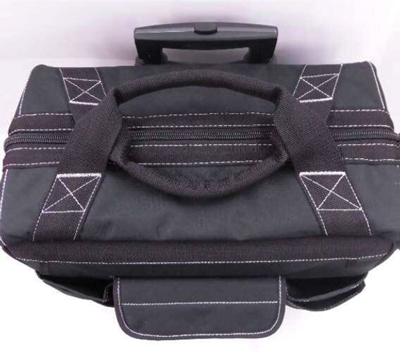

Users can bring our system as like journey to everywhere by a carry bag. Also easy to installed everywhere.
Our advantage
- No need for power consumption
- Light weight and easy to carry it anywhere
- Installation work should be within 1 to 2 min.

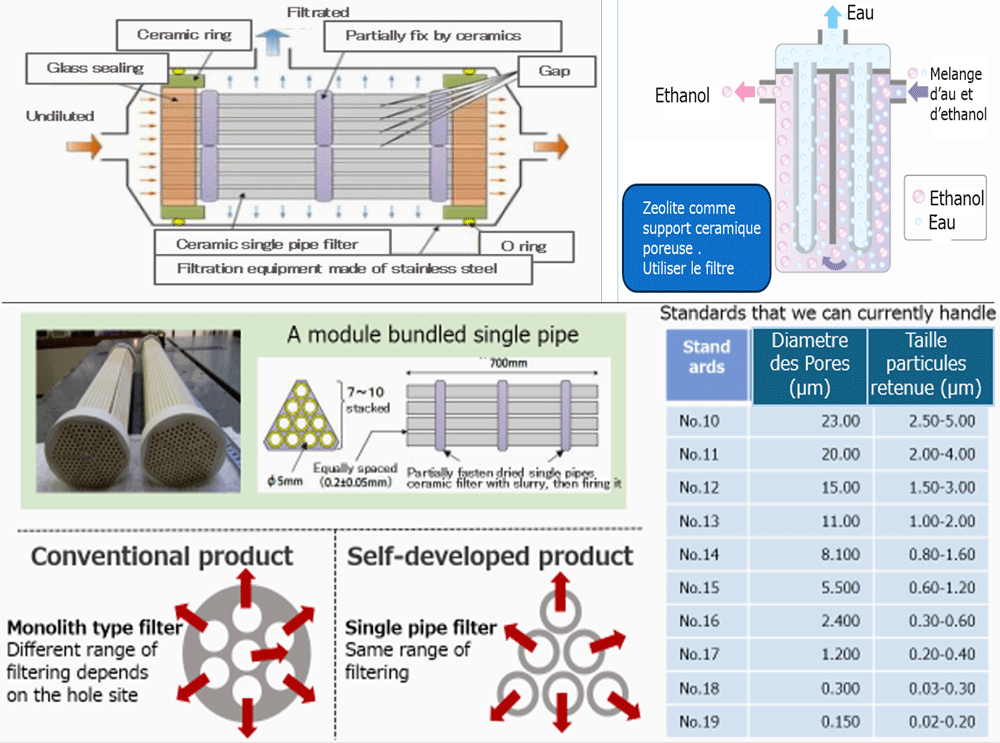

Mechanism and Specifications

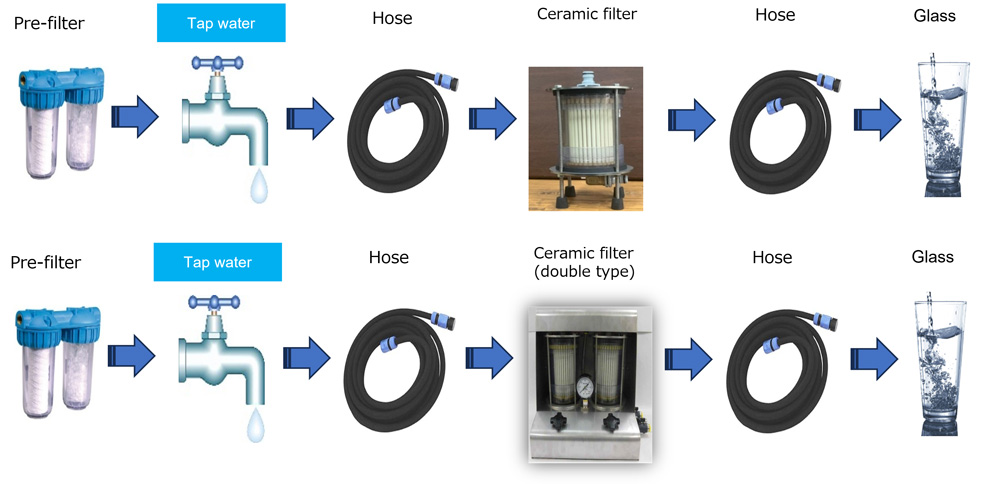

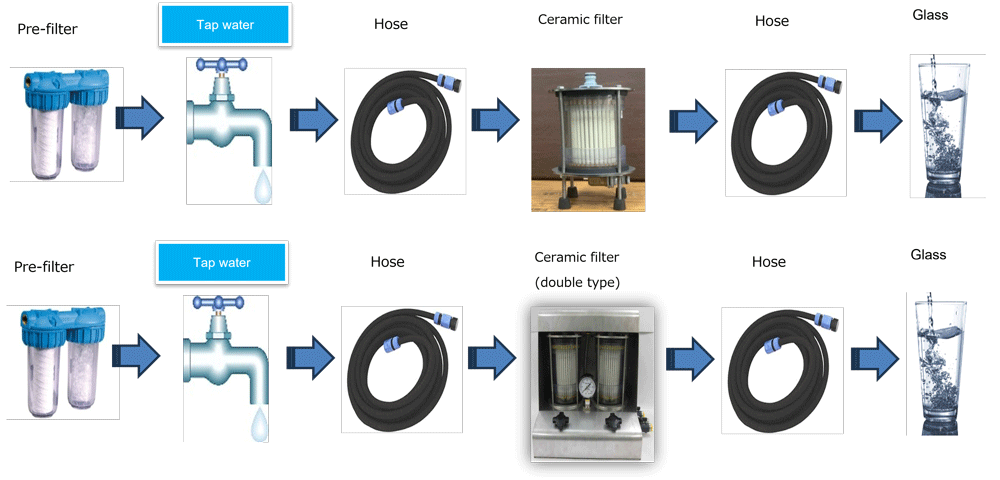

Simple solution : Tap water
Ceramic filters remove contaminants such as E.coil bacteria
Attention
It should be noted that water other than tap water that is extremely dirty, our system cannot filter out all impurities.
It is therefore important to use a pre-filter to reduce impurities before passing them through the device.

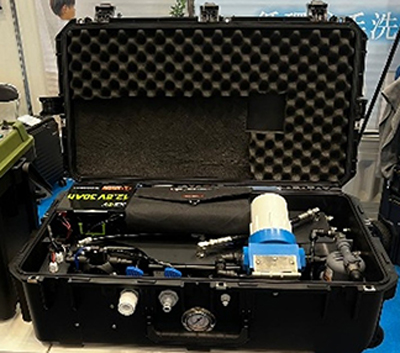

Portable system : Sea water
Designed to be compatible with both seawater and fresh water.
Thanks to its ERS system and unique pump, it transforms seawater into fresh water while consuming a reduced amount of energy.
The built-in battery provides approximately 3 hours of runtime and can be recharged using the included solar panel or a 100V AC charger.
Our advantage
- No need for power consumption at 3 hours.
- Light weight and easy to carry it anywhere.
- Installation work should be within 1 to 2 min.
Specifications
| Permeable water volume | 30L/hours |
|---|---|
| Weight (dry) | Approximately37kg |
| Consumption power | 120W |
| Battery volume | 460W/h |
| lifting height(of a pump) | 1.5meter |
| Power supply | 120V10Ah |
| Dimensions | 823*246*470(WHD) |
Portable system

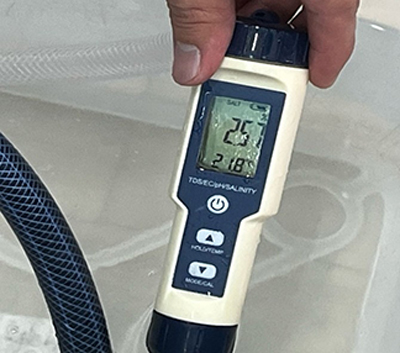

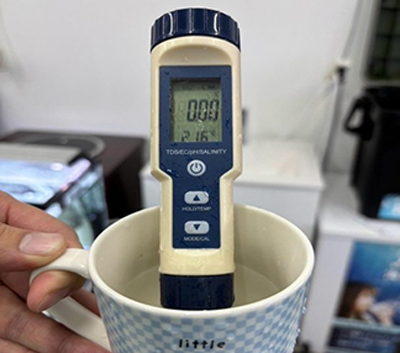

Salt content before filtration ( 2.57% )
Salt content after filtration ( 0.00%)
The ceramic filter can also be used for :
- Water fountains:
- Ceramic filters in water fountains provide pure, healthy water, reduce costs, and are environmentally friendly.
- Ice machines:
- The use of ceramic filters in ice machines ensures pure ice, improves taste, and reduces scale.
- Agriculture(irrigation):
- Filters improve irrigation water quality, protect irrigation systems, and increase crop yields.
- Bottled of water vendor:
- Ceramic filters improve the quality of bottled water while retaining essential minerals.
Certified Testing in Senegal:
Our ceramic filter underwent pre- and post-filtration inspection at the Institute Pasteur de Dakar, yielding satisfactory results in terms of bacterial removal.
We are currently awaiting official approval from the Ministry of Health of Senegal, based on the successful outcomes of these tests.
Institution Pastor of Dakar also validated the filter's performance, confirming its ability to eliminate bacteria from resource water commonly found in Senegal.
We would be pleased to offer you the opportunity to conduct similar water inspection tests in your country, in order to verify its effectiveness under local conditions.
Our Solution to solve issues
We provide support to numerous African nations, with a primary focus on the Republic of Senegal.
While we are not a large corporation capable of building extensive facilities, we specialize in providing cost-effective solutions to address water challenges faced by numerous communities in Africa.
We are deeply committed to our mission and invite you to explore the effectiveness of our offerings.
